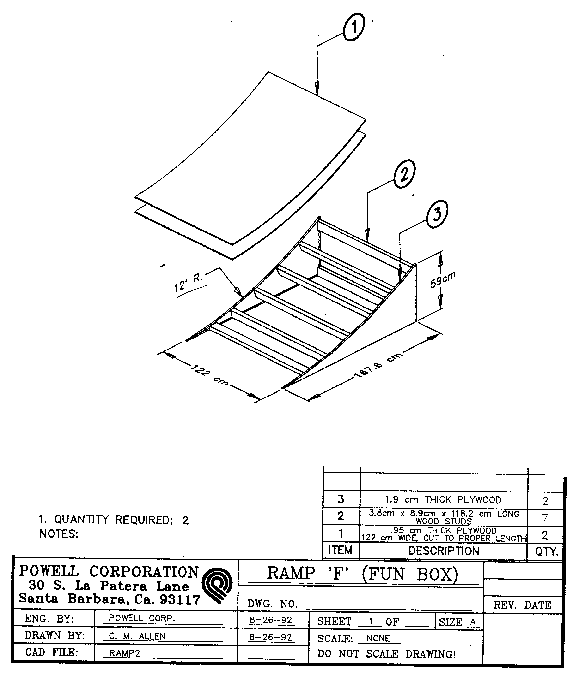

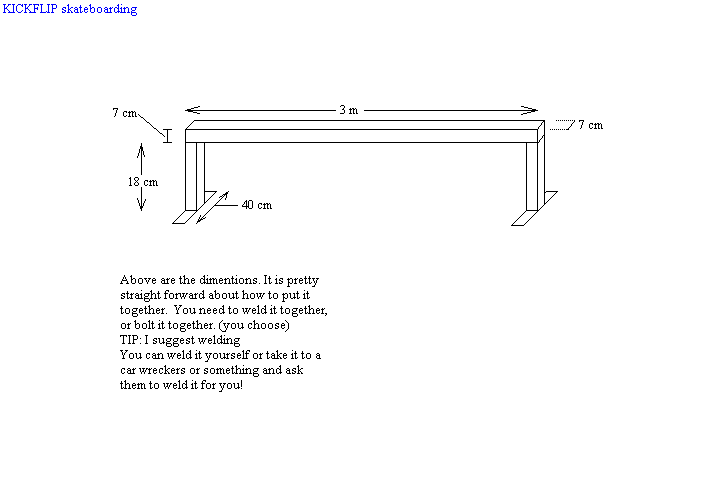

    The Funbox                 The Pyramid                  1/2 Pipe                     Drop In                Launch Ramps           Grind Rail

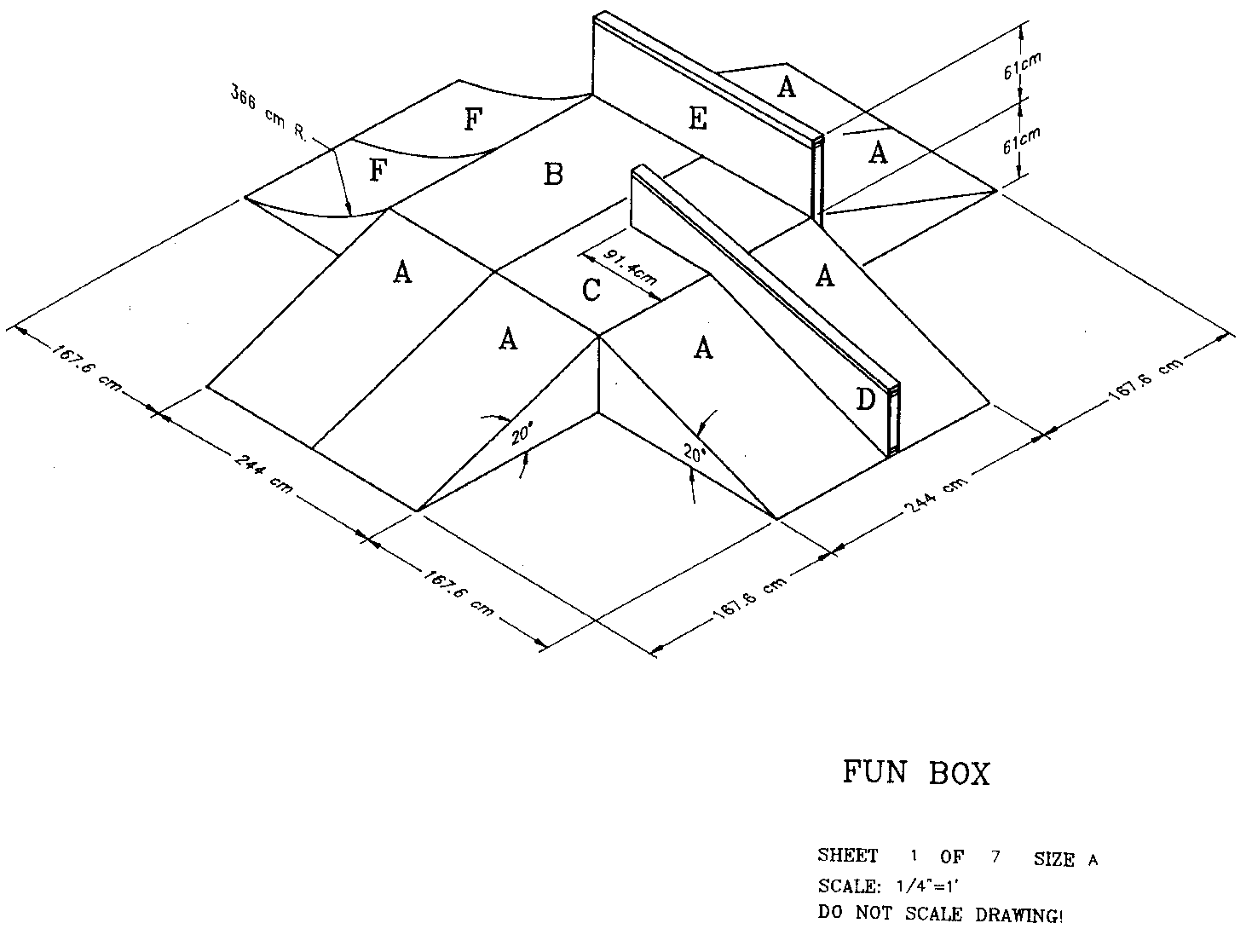

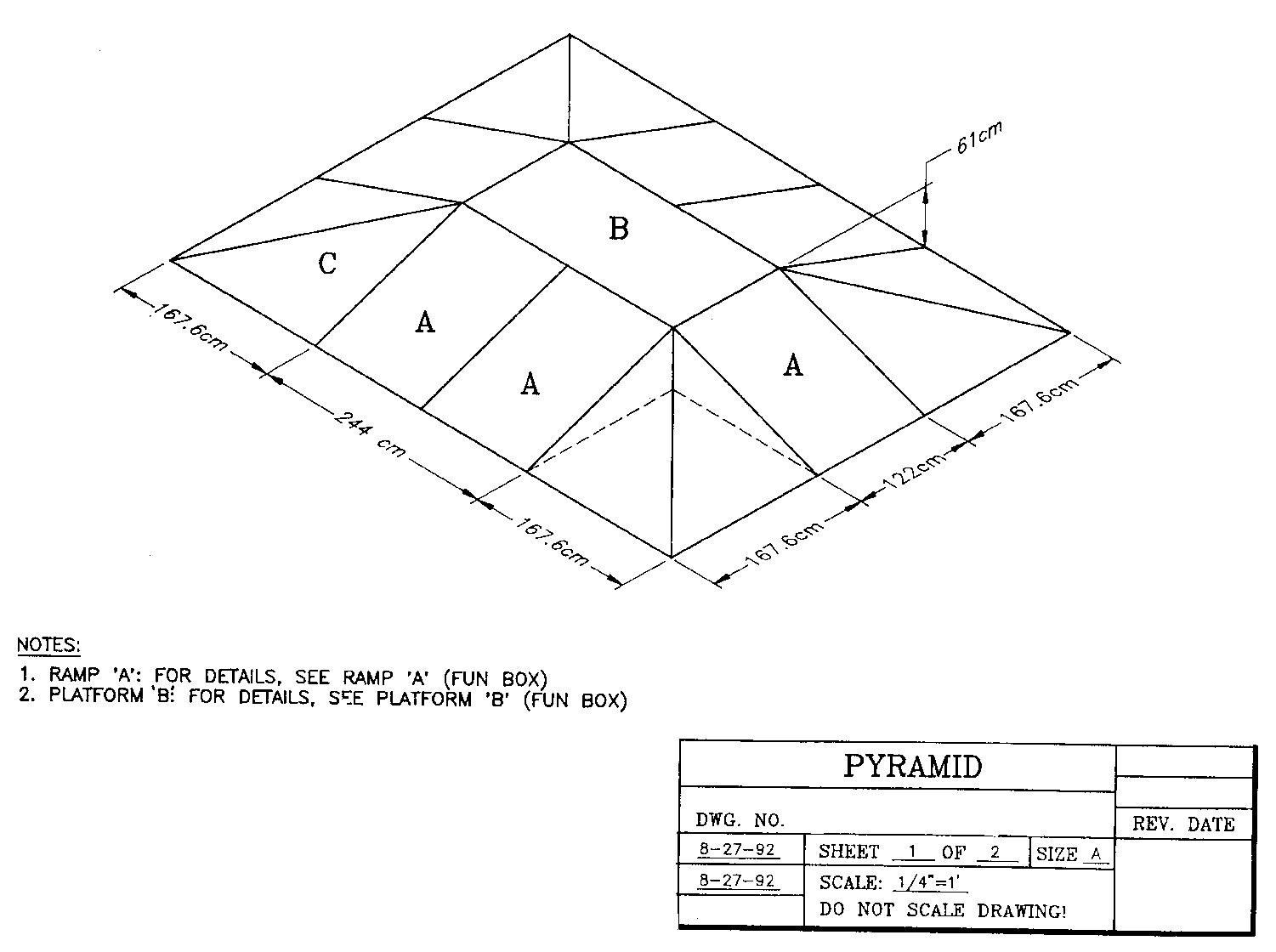

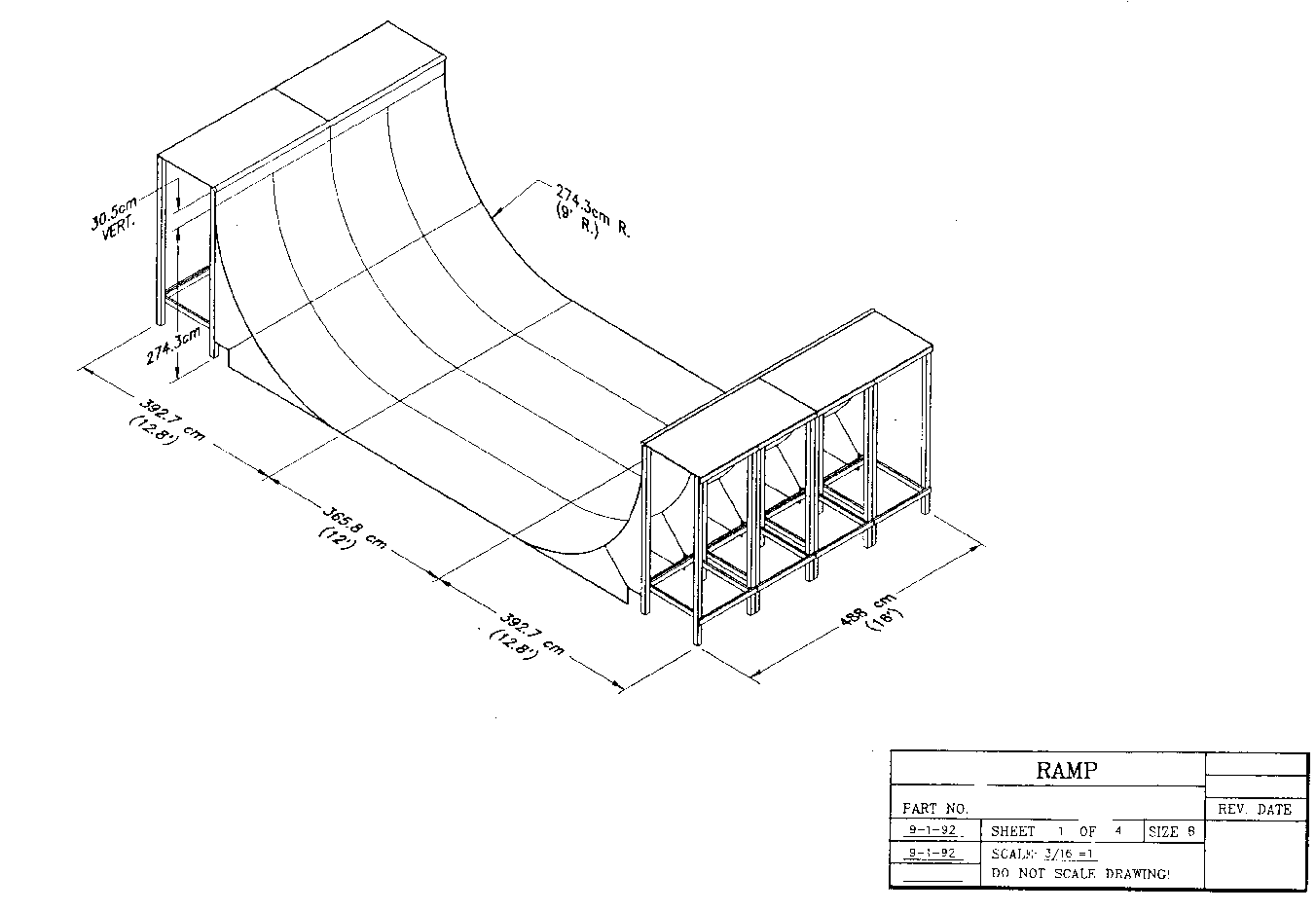

Funbox Overview         Pyramid Overview         1/2 Pipe Overview       Drop In Overview                Flat

 funovwhi.gif (19949 bytes)         pyrovwhi.gif (20410 bytes)         halfovwhi.gif (19191 bytes)        dropinhi.gif (29662 bytes)           fbrdethi.gif (23732 bytes)       grindrail.gif (5914 bytes)

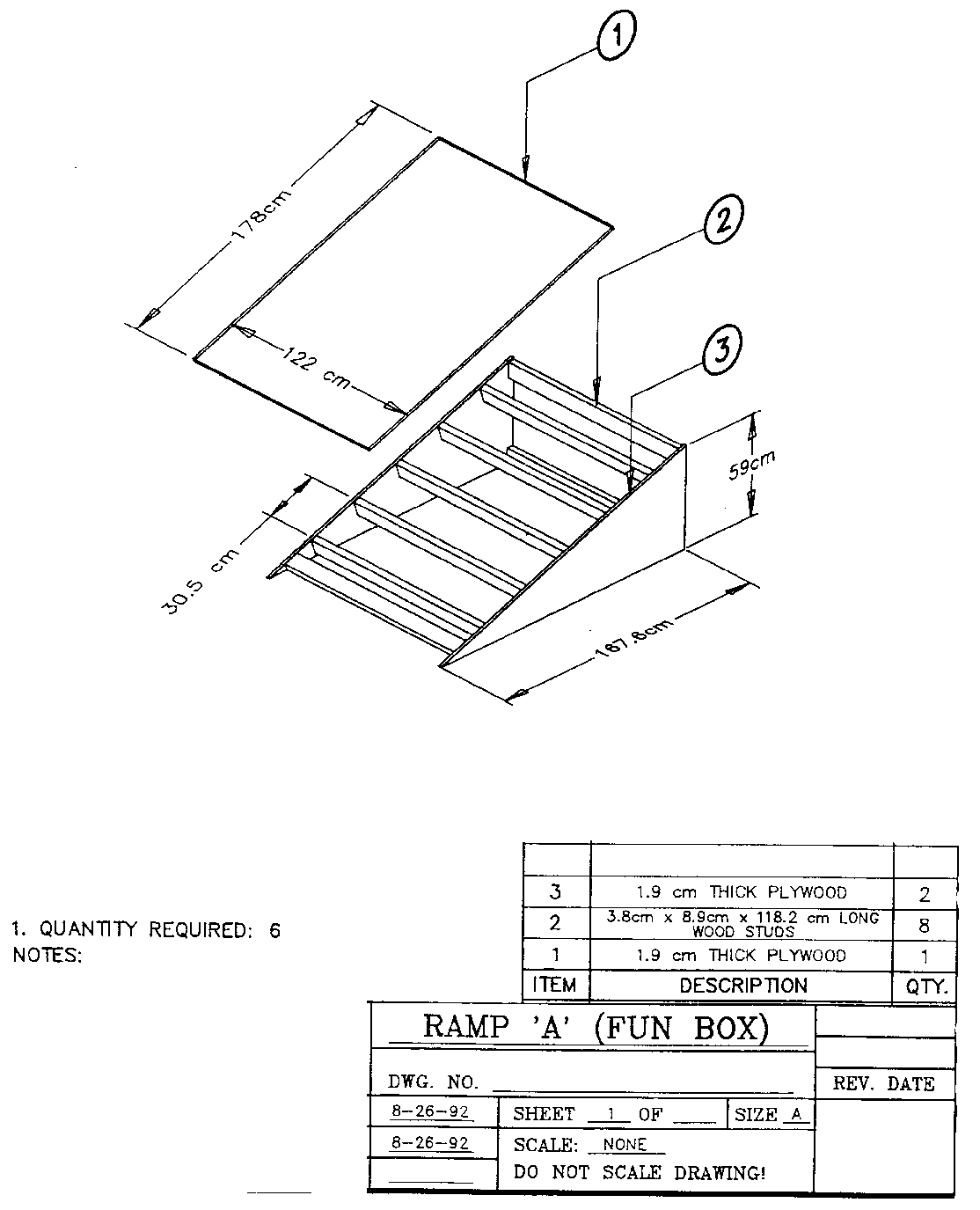

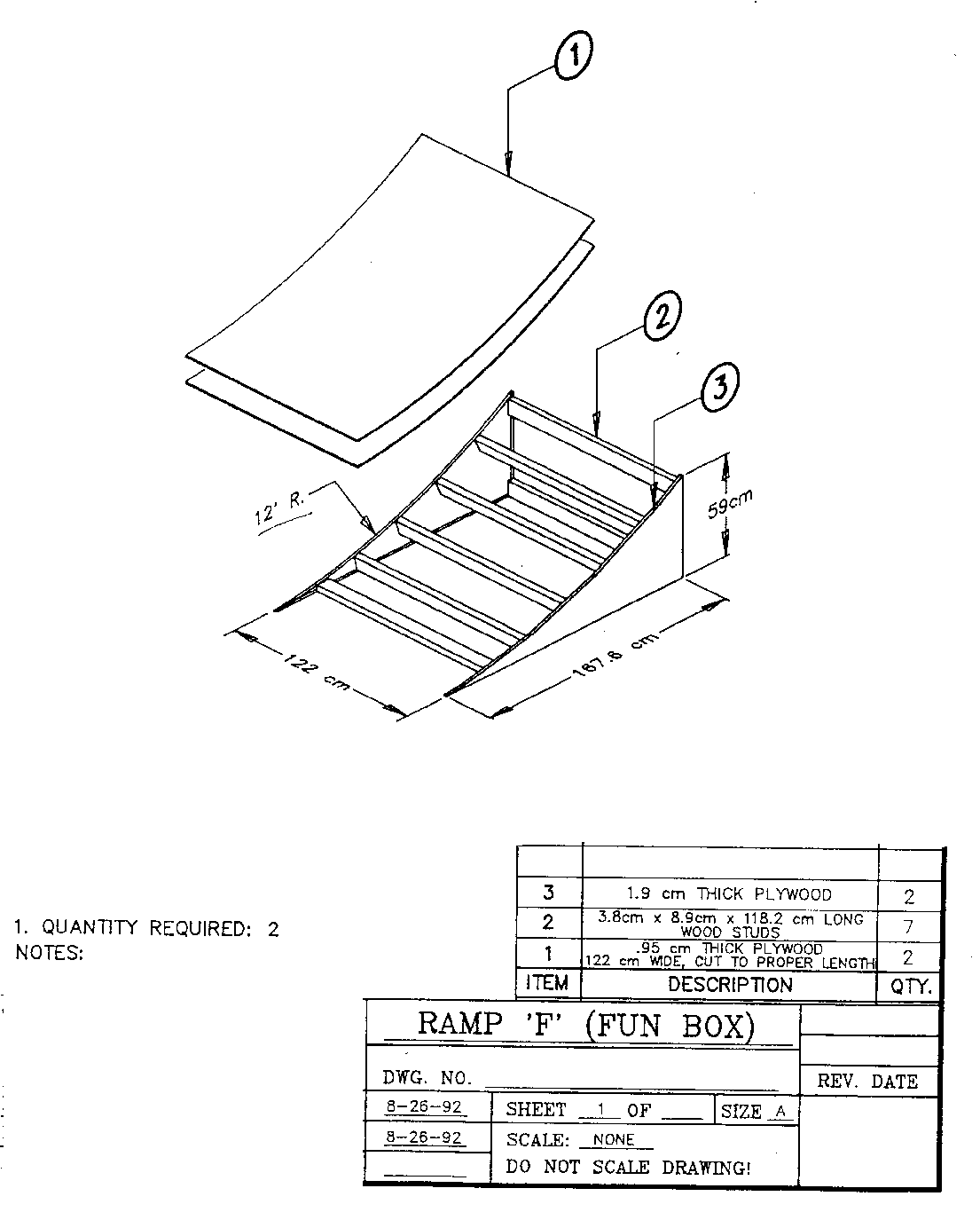

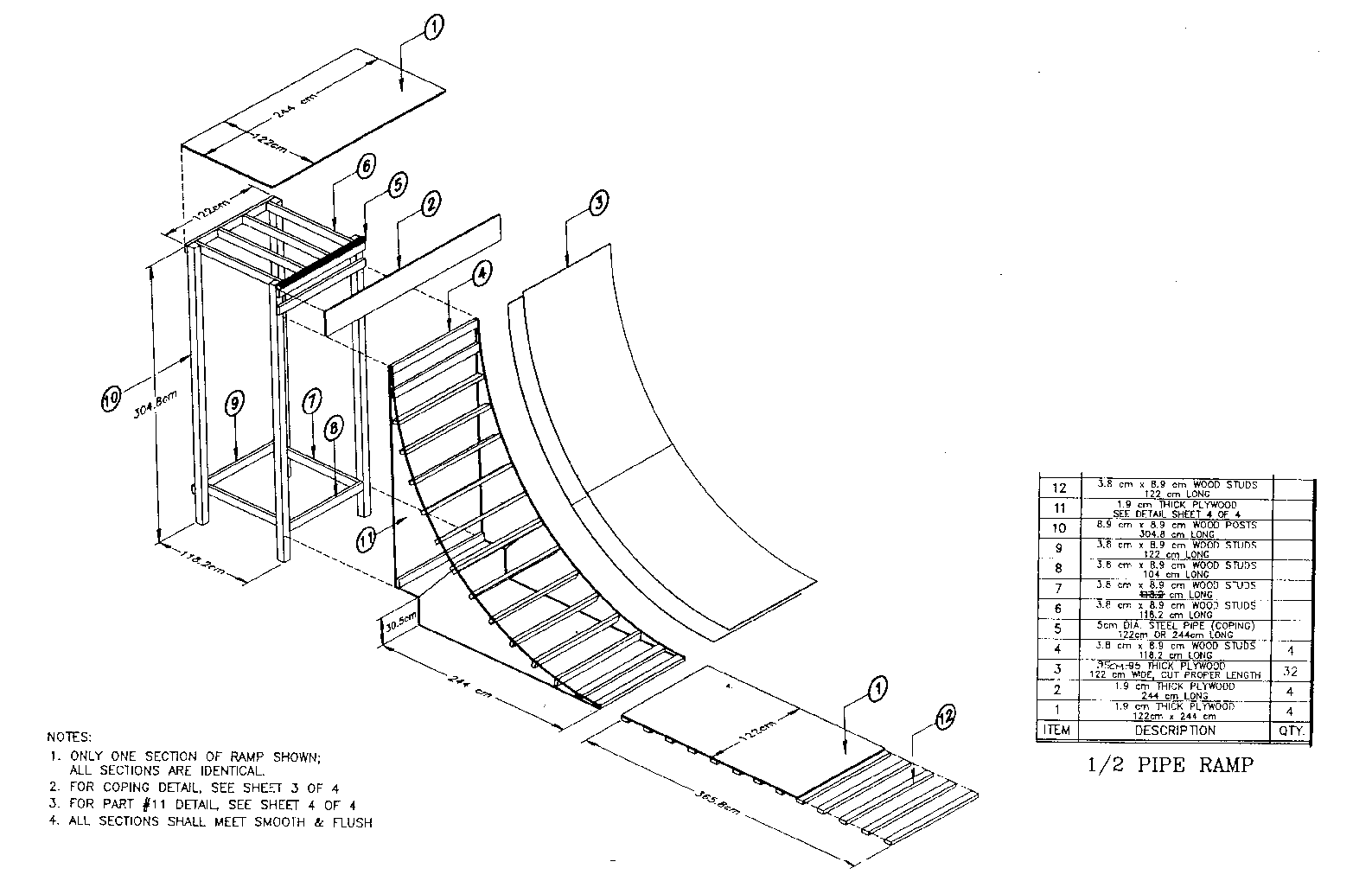

       Part A                           Part A                 1/2 Pipe Detail                                                       Curved

fbrdethi.gif (23732 bytes)         fbrdethi.gif (23732 bytes)       halfpiphi.gif (33976 bytes)                                                 ramphi7.gif (22562 bytes)

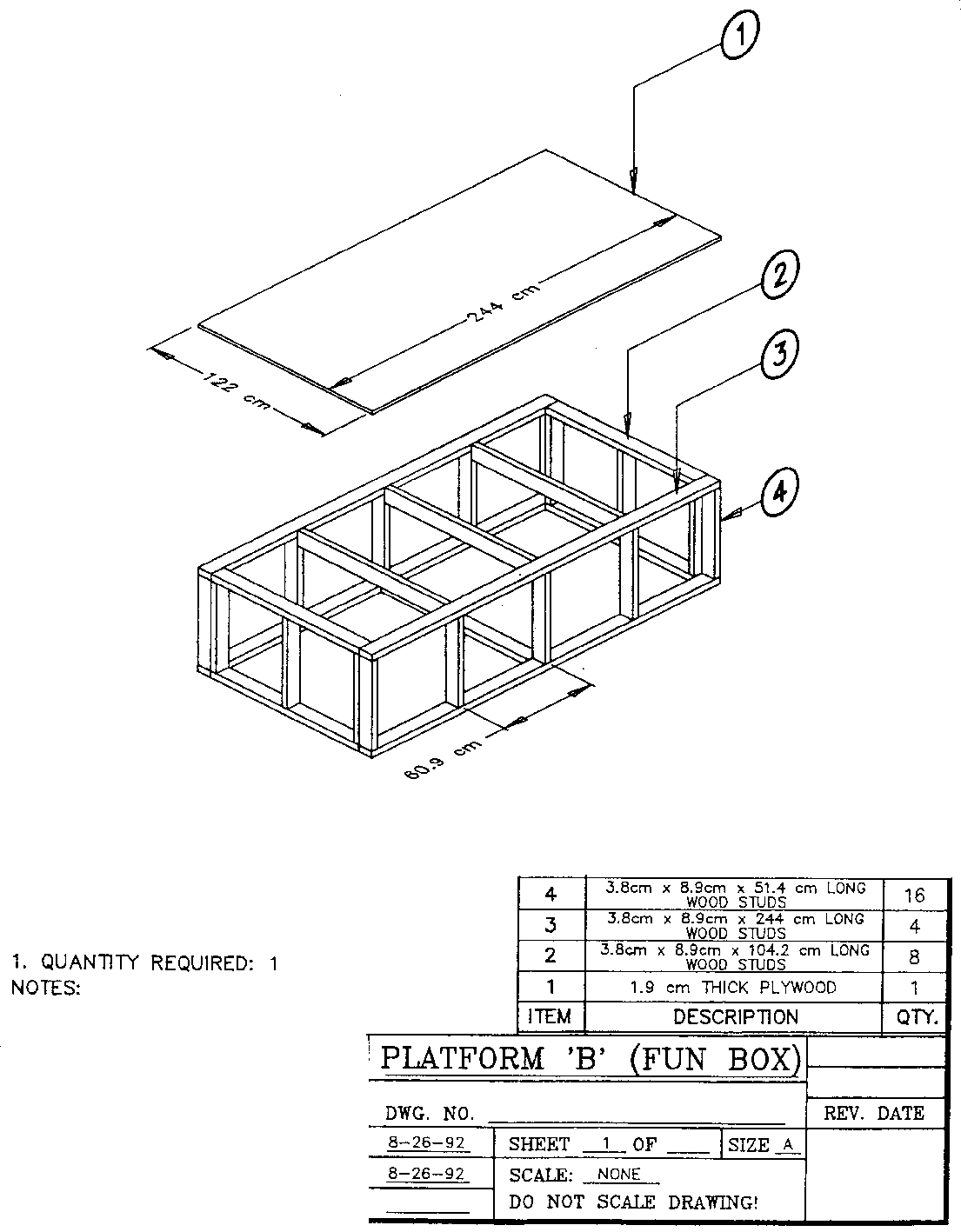

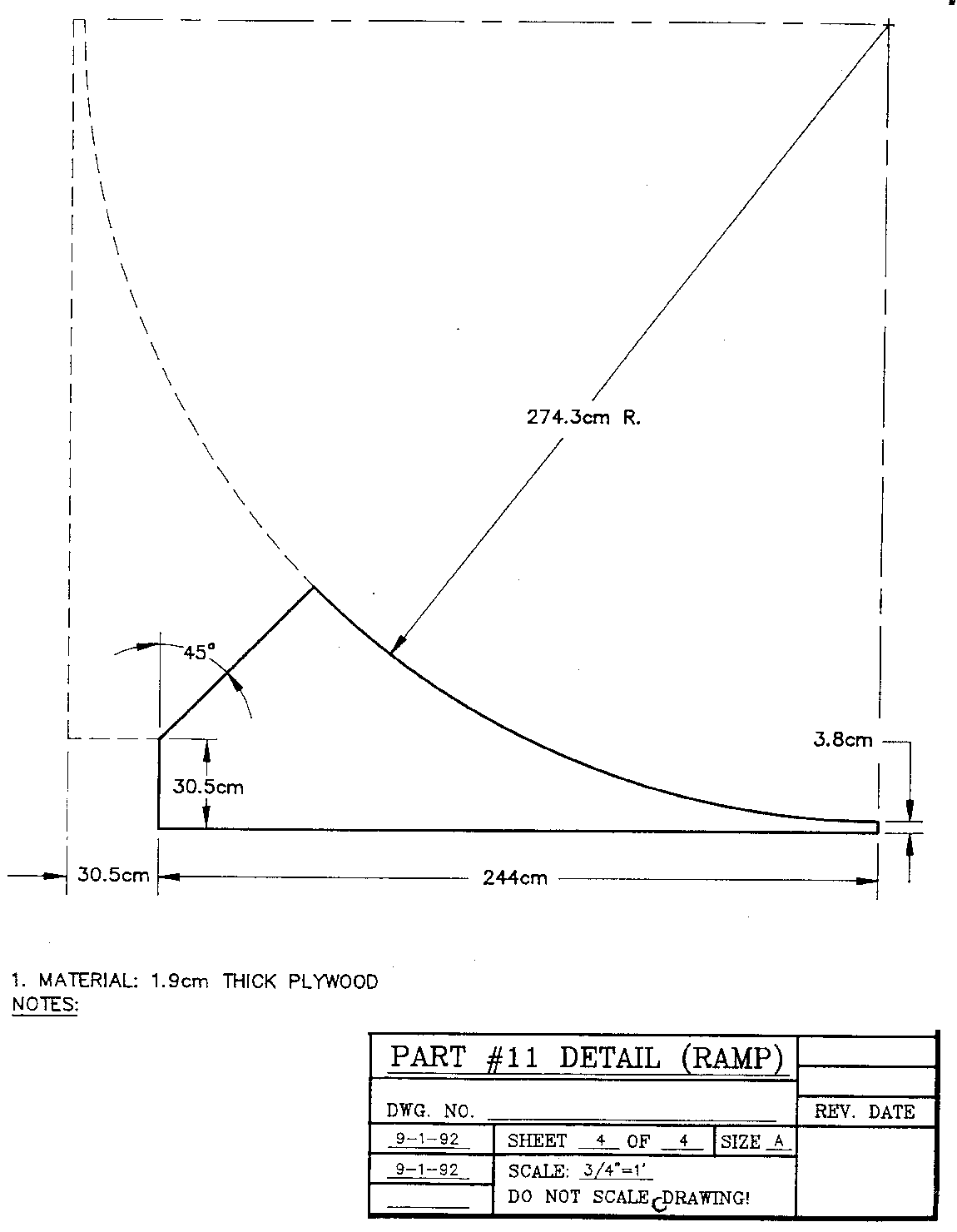

       Part B                             Part B            Transition Specs

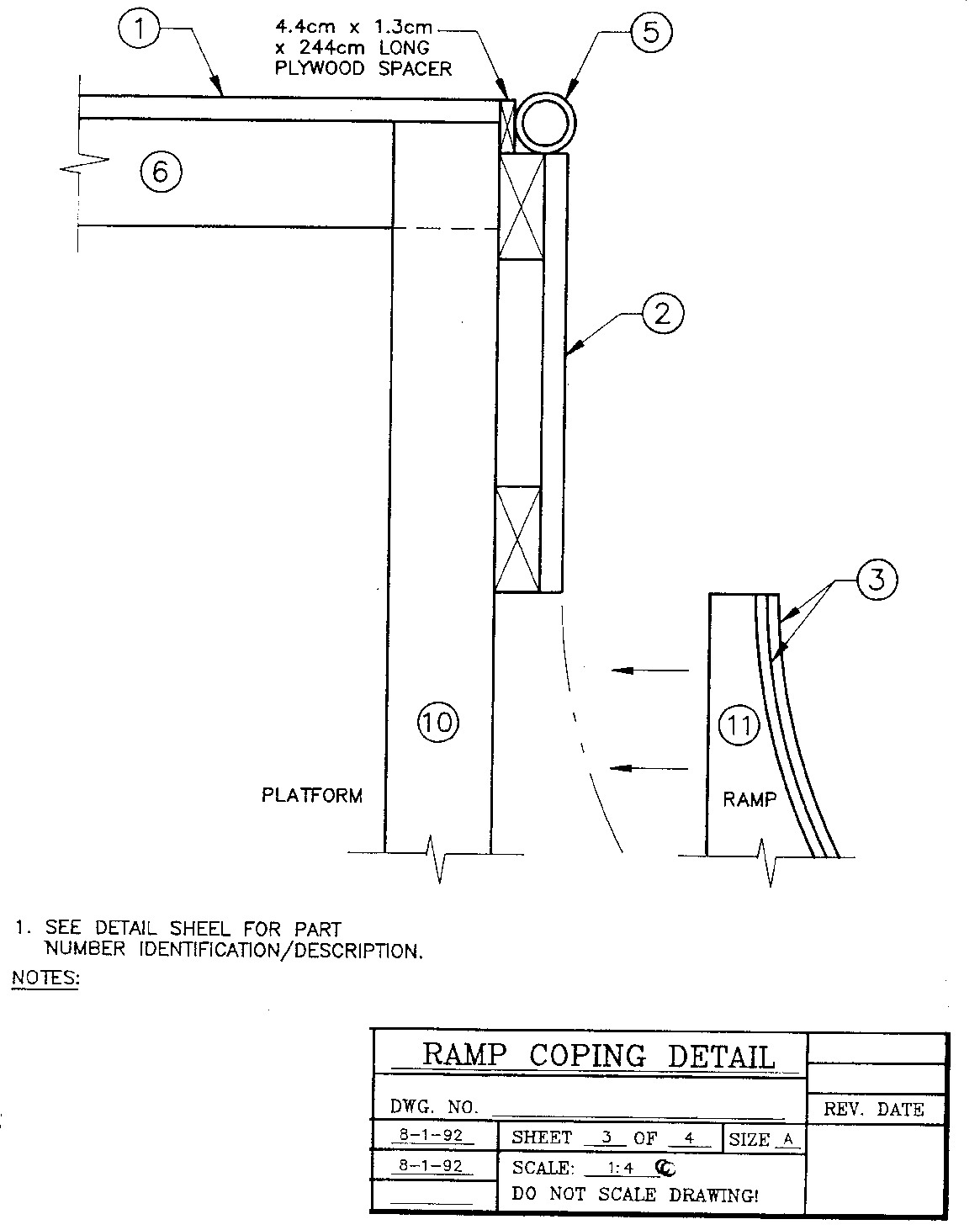

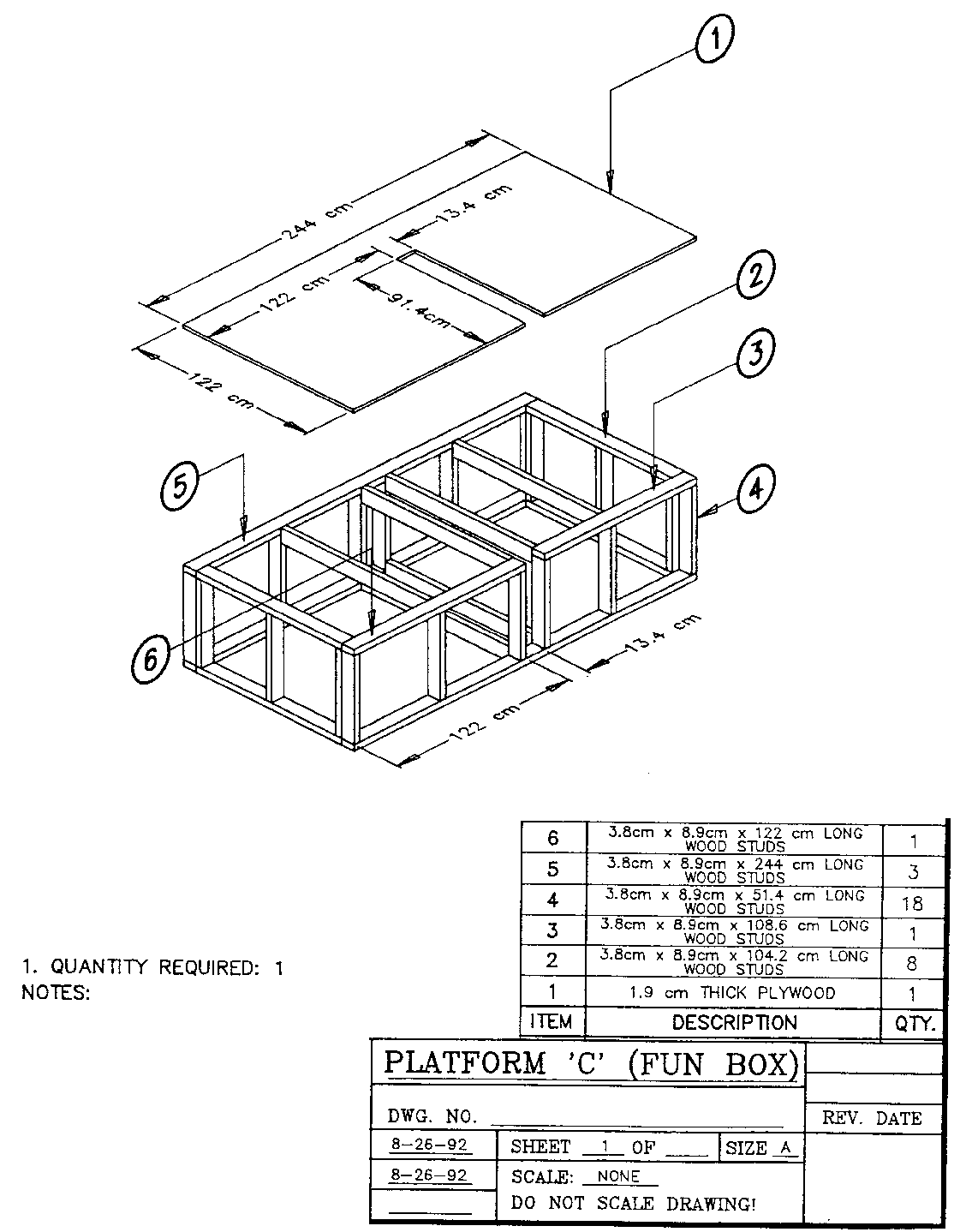

       Part C                            Part C                Coping Detail

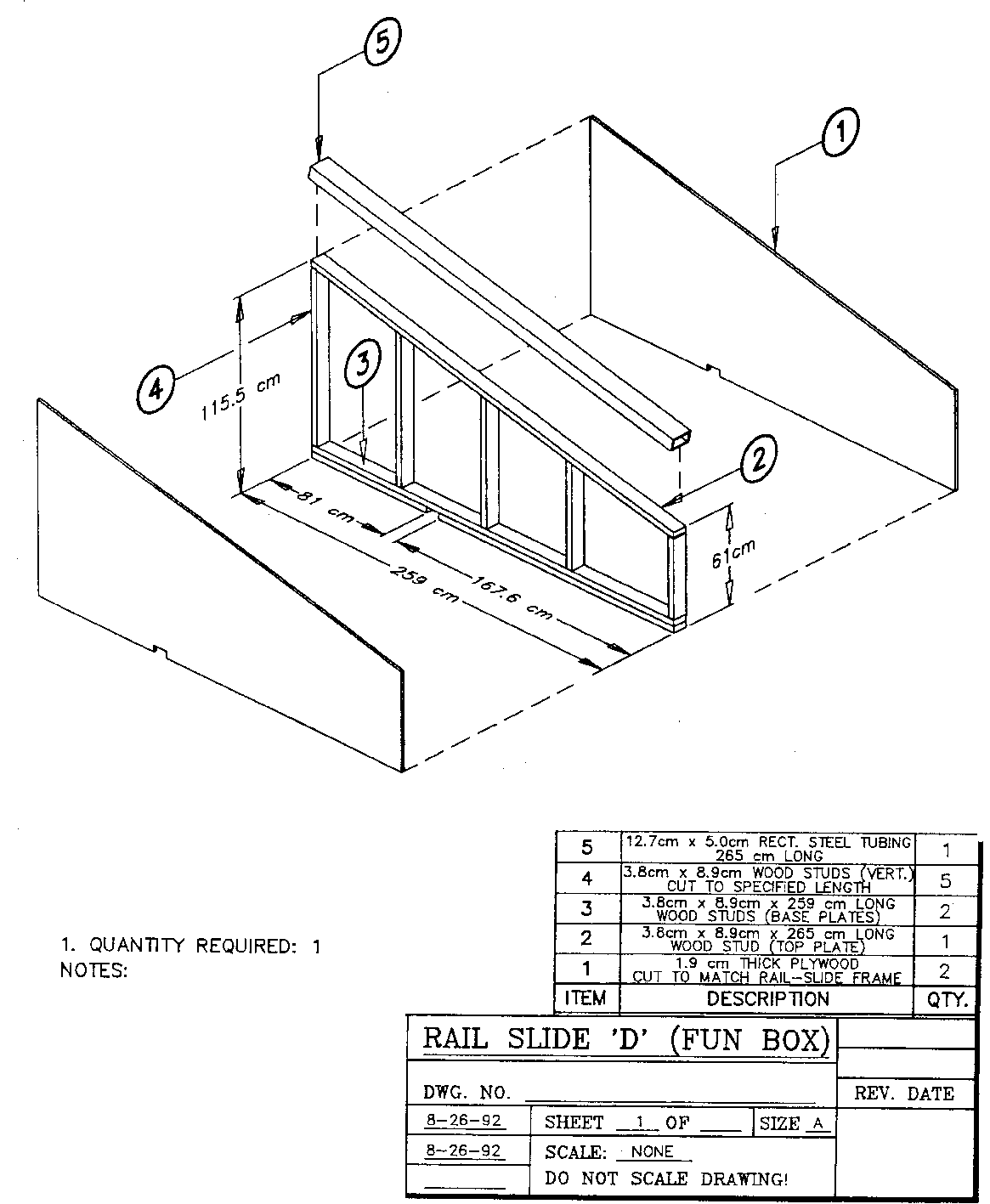

        Part D


      Part E
